Turn on to the vintage charm of natural spring reverb coupled with pulsing tremolo. Source Audio doesn’t depend on the off-the-shelf reverb effects processors found in many modern reverb pedals, we meticulously craft every one of our proprietary effects engines and load them to high-powered, 56-bit Sigma DSP. Our two man engineering team of Bob Chidlaw and Jesse Remignanti put years of collective man-hours into capturing every nuance and idiosyncrasy of the spring reverb and tremolo effects from some of the music gear industry’s most iconic guitar amps and outboard gear. The result is indisputable sound quality with magnificent tonal depth and precision.
True Spring Reverb logo designed by Jamie Bulmer
The Spring Reverbs
The True Spring’s reverb effects are based on a mechanical design originated by the Hammond Organ Company™ in the late 1930s. This stark design uses a pair of input and output transducers to inject an instrument’s dry signal into an actual set of spring coils and capture the very distinct reverberations as the sound bounces back and forth within the springs. Of course, Leo Fender adopted this design in the 1960s with the some of his "blackface" amplifiers and a revolution was born.
- Short Spring Reverb: Modeled after the unmistakable twang of "blackface" amplifiers of the 1960s. After extensive research we found tremendous diversity in the spring reverb sounds of a variety of amps. Some offered a tighter, less animated tone while others sounded “drippier,” with longer sustain and livelier reverb trails. The SHORT Spring reverb engine offers a taut sound with a quick decay and smooth trails.
- Long Spring Reverb: Produces long and deep reverb decays with noticeable “drip” and highly animated trails. The LONG Spring engine is not as dramatic as the TANK Reverb engine, but does offer an extremely authentic representation of some of the livelier reverb tanks found in vintage combo amps.
- Tank Spring Reverb (Outboard Spring): Captures the unmistakable effect of the tube driven outboard spring tanks of the 60s. The sound of reverb tanks like the classic Fender 6G15™ are characterized by their “drippy” attack and animated trail. This original two-spring design produces a bouncing, delay like sound inseparable from the early days of surf rock and spaghetti western soundtracks.
The Official True Spring Reverb Demo Video
The True Spring Reverb also allows you to combine any of its iconic spring reverbs with any of the pedal's three tremolo effects. The True Spring's tremolos are the same organic effects that originally appeared in our Vertigo Tremolo - the winner of Guitar Player’s “Hall of Fame 2015” and Premier Guitar’s “Premier Gear Award.”
- Opto Tremolo: Optical tremolo (a.k.a. “Photocell Tremolo”) is the effect found in many combo amps of the 1960s. This version of tremolo relies upon a neon light bulb and a light dependent resistor called an "optocoupler." The non-symmetrical aspects of the light and the optocoupler give the tremolo a distinct choppy character.
- Harmonic Tremolo: This unique effect first appeared in Fender™ “brownface” amps made between 1959 and 1963, which alternately modulated the levels of bass and treble frequencies in the audio signal. The result is a very pleasing and complex tremolo that has characteristics reminiscent of a phaser.
- Bias Tremolo: This approach to tremolo involves using an LFO to modulate the bias voltage of the tubes in an amplifier. This essentially pushes the tubes in and out of saturation. The result is a smooth amplitude modulation with a mild overdrive created by the tube saturation.
More True Spring Reverb Demos
Andy Martin of Reverb.com offers a blind comparison between the spring reverb and tremolo effects of the True Spring Reverb and those of a Fender 65' Reissue Deluxe Reverb amplifier. Can you tell which is which?
There is nobody more obsessed with the "drippy" tones of a quality outboard spring reverb tank than Ryan of 60 Cycle Hum: The Guitar Podcast. Check out his initial reactions to outboard spring sounds of the True Spring Reverb's TANK engine.

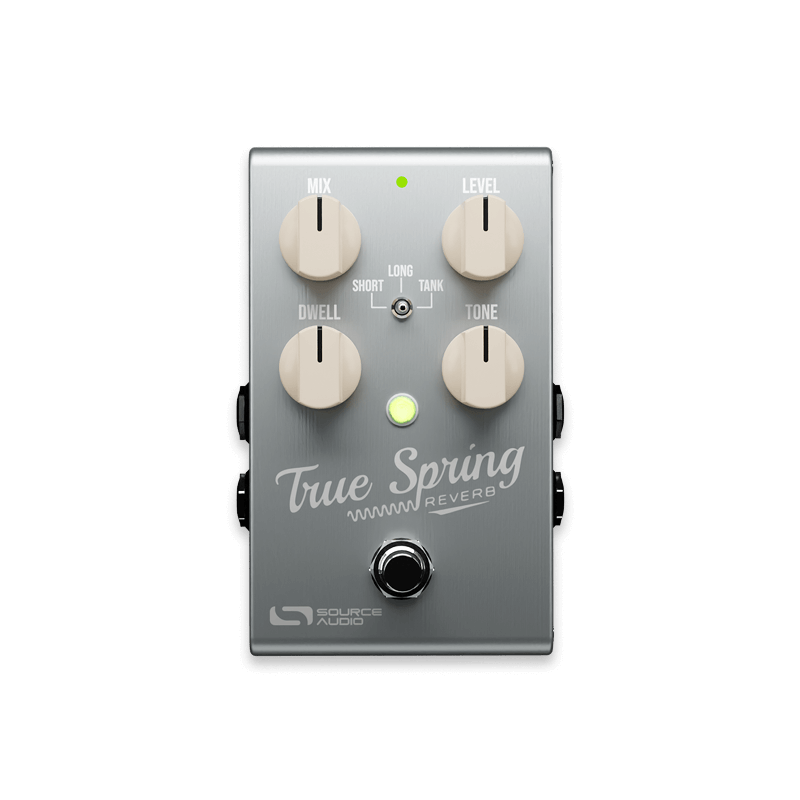

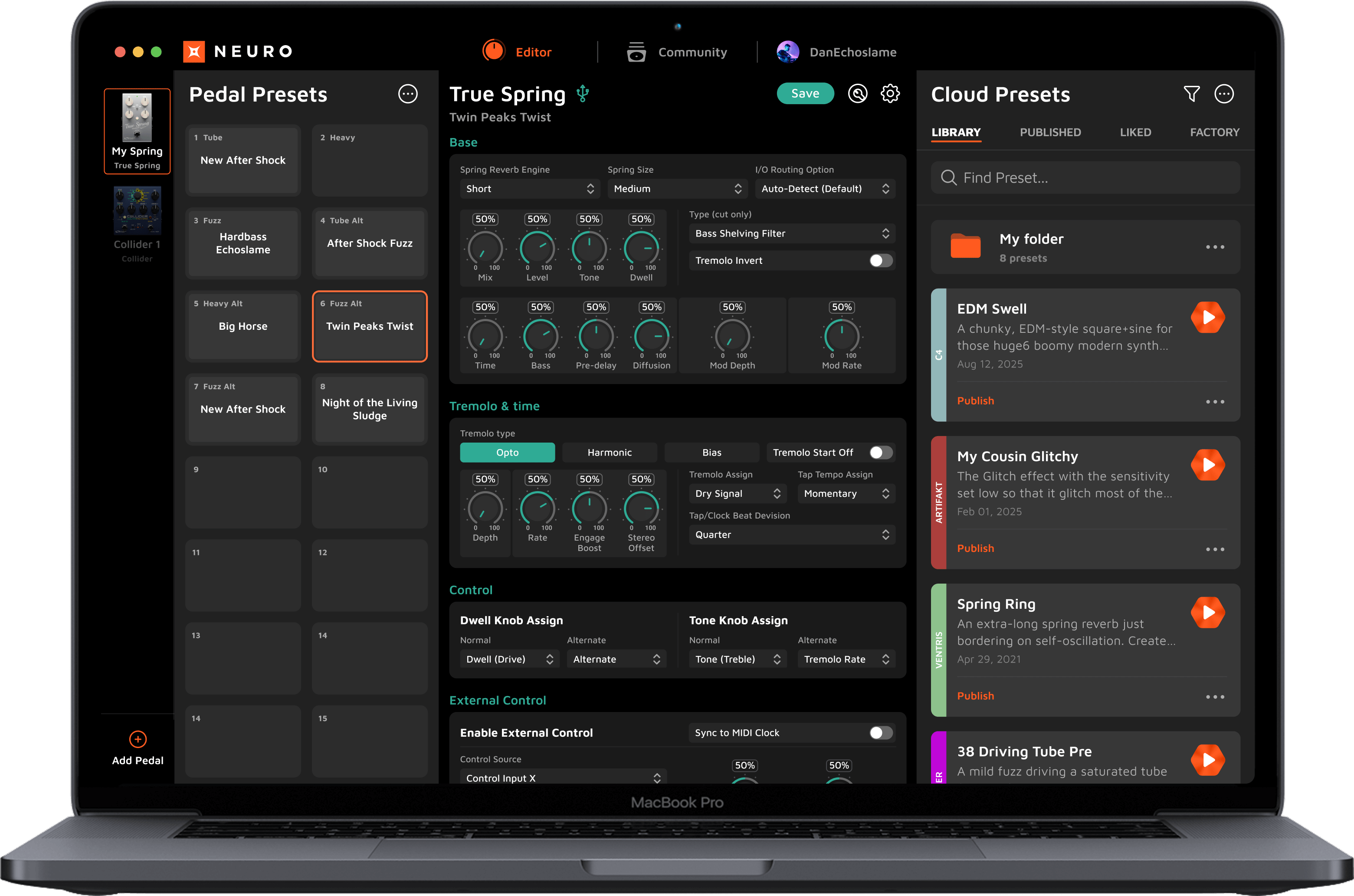

Out of the box, the True Spring Reverb couldn’t be simpler – just plug it in, select from the three onboard reverb engines, dial in some tremolo if you like, and start making beautiful music. But something deep and powerful resides just below the surface - the truly “Big Idea” behind all of our One Series pedals is the second, far deeper, set of options and editing tools for crafting the perfect tone. The Neuro Mobile App is available for free at the App Store (iOS) and Google Play (Android). The Neuro Desktop Editor is available as a free download for Mac or Windows systems on our Downloads page. These powerful editing tools offer an advanced collection of deep editing parameters. After customizing your sound, burn it directly to the pedal and easily access it anytime without having to reconnect the Neuro Mobile App or Neuro Desktop Editor.
Additional Features and Specifications
Neuro Editor Features
- Three Distinct Spring Reverb and Tremolo Effects.
- Two Modes of Operation – Use the pedal in Standard Mode for a classic (non-preset) stompbox experience or turn on Preset Mode and save a user preset (including reverb/tremolo effects and knob positions) to each of the three toggle switch positions.

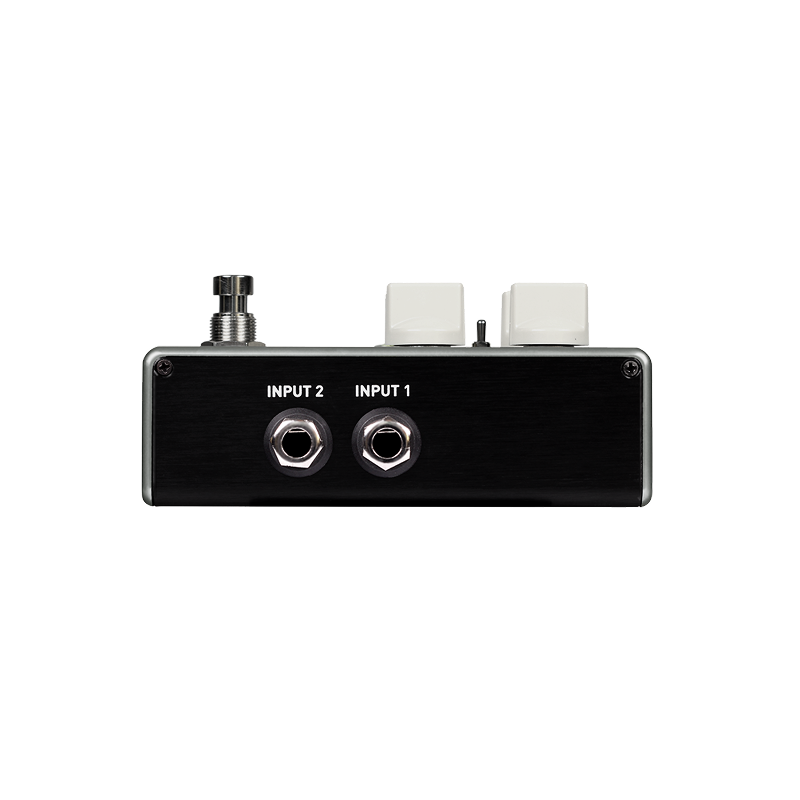

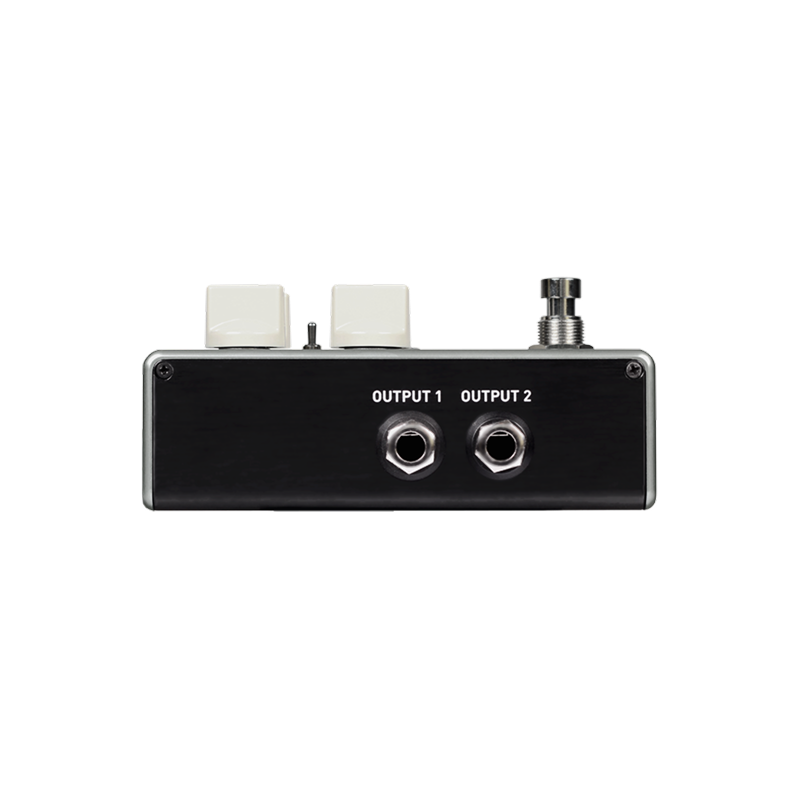

- Flexible Stereo Routing – The True Spring is equally at home in a mono or stereo rig. The pedal’s stereo inputs and outputs offer a variety of routing options such as Stereo to Stereo, Mono to Mono, Mono-to-Stereo, Stereo Sum-to-Mono and External Loop Mode.
- Universal Bypass — Select Active Analog (Buffered) or True Bypass.
- Secondary Tremolo Controls - Press and hold the CONTROL INPUT button to access the True Spring's tremolo effects (DWELL knob controls tremolo DEPTH / TONE knob controls tremolo RATE / toggle switch selects tremolo type).
- Expression Control — Compatible with Source Audio expression pedals and the Hot Hand 3 Universal Wireless Effects Controller. Assign up to three simultaneous parameters with editable depth and direction.
- External Tap Tempo – Use the Source Audio Tap Switch to tap in the tremolo rate with a choice of four different beat divisions (quarter, eighth, triplet, and sixteenth).
- External Tremolo Engage and Bypass – Use the Source Audio Tap Switch to engage or disengage the tremolo effects on top of an active spring reverb.
Connect the True Spring Reverb to the Neuro Mobile App (a free download for iOS and Android) or the Neuro Desktop Editor (a free download for Mac or Windows computers) and explore the power of effect downloading, customization, and sharing that comes with every One Series pedal.
- Interchangeable Algorithms — Upload any of the additional reverb or tremolo effects directly to the pedal at no additional charge.
- Customize Effects — Tweak an additional set of parameters including advance EQ, pre-delay, diffusion, reverb modulation, virtual spring length, and more.
- Save and Share Customized Presets — Once you’ve fine-tuned an effect, save it to your personal effects collection in the cloud and share it with the growing community of Neuro users.
- Download Presets — Explore Source Audio’s ever-expanding library of effect presets. Choose from Source Audio Factory presets or presets created and published by members of the Neuro Community.
- Signal Routing Options — Re-route the stereo Inputs and Outputs in a number of different ways including Auto Detect, True Stereo, Mono to Stereo, External Effects Loop, and more.
- Simple Connection — The Neuro Mobile App. connects with the True Spring via the mobile device’s headphone jack and Stereo Input 2 on the pedal. A Neuro App connector cable (1/8” to 1/4”) is included with the pedal.

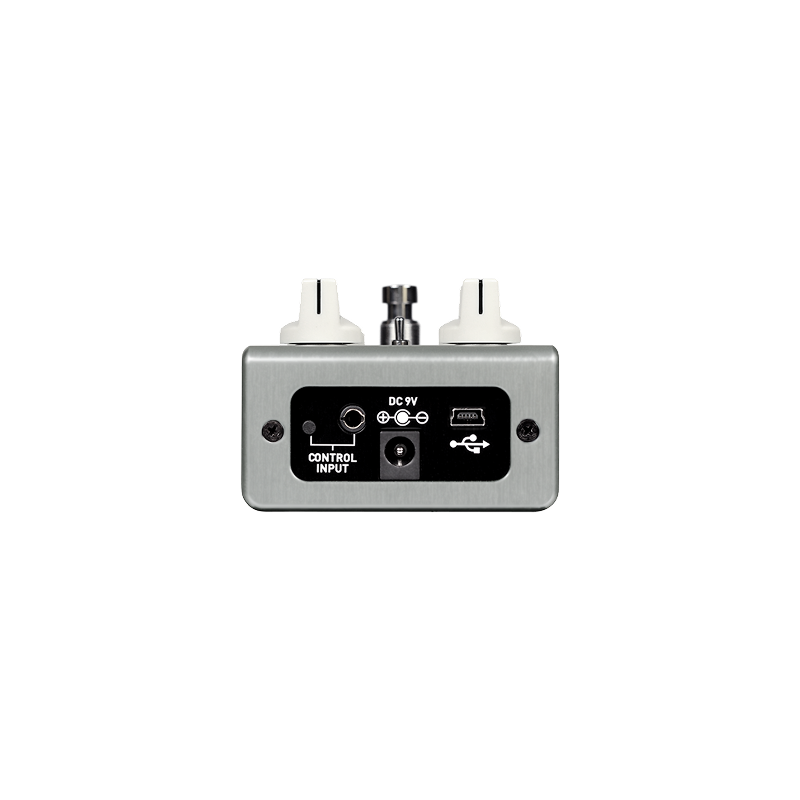

- USB Connection – Use the pedal’s mini USB port to connect the True Spring to the Neuro Desktop Editor, which can be used to edit presets or download the latest pedal firmware.
The True Spring Reverb also features full MIDI capability and simplicity when coupled with the Neuro Hub (formerly Soundblox Hub).
- Preset Saving – Save up to 128 effect presets.
- Multi Pedal Scene Saving – Connect up to five One Series and Soundblox 2 pedals to the Neuro Hub and create 128 multi pedal scenes, recallable via MIDI program change messages.
- External Expression Control – Connect the Neuro Hub to any Source Audio expression pedal, Hot Hand 3 Wireless Effects Controller or third party TRS (Tip Hot) expression pedal and manually control effect modulation or assign individual or simultaneous expression control to any adjustable parameter.
- MIDI Clock – Sync your tremolo rate with external MIDI clock messages.
- Includes 9v DC power supply (300mA / Negative Tip)
- Includes 1/8” to 1/4” cable for Neuro Mobile App connection.
- Power Consumption — 165mA
- USB port — Connects to Mac or Windows PC for firmware updates and the forthcoming in-depth effects editing software.
- Brushed anodized aluminum housing.
- Dimensions: L: 4.5 in./11.4cm x W: 2.75 in./7cm x H: 2 in./5.1cm (including knobs)
